Part Number: ETI0001-1474
MilSpec 2000VA Rugged Integrated
Rackmount UPS and Intelligent
Power Distribution Unit Combination
Navy / L-3 Comm Standard Product
PowerStationÔ MilSpec N5
Configuration
Isolated UPS, 2000 VA Rugged Rack Mount UPS w/ Integrated
6 Circuit, 2 Pole, Intelligent, Solidstate Power Distribution Unit

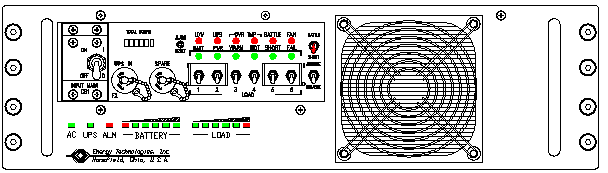

ETI0001-1474 Rugged MilSpec UPS and PDU Standard Front
Panel Layout
ETI0001-1474 Rugged MilSpec UPS and PDU Standard Rear
Panel Layout
The field proven PowerStation™ UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.
These units are equally suited for use in shipboard, airborne, vehicular, field
deployed or fixed locations with controlled or uncontrolled environments.
The ETI0001-1474 was specifically designed to meet the stringent
requirements of the L-3 Comm program.
The ETI0001-1474 does not require a separate PDU since the PDU
functions are already integrated into the UPS module. This saves rack space, cabling and
expense while improving overall reliability.
The heavy-duty chassis occupies only 3U (5.25”) of
rack space while delivering up to 2000 VA of clean, uninterruptible power. The
rounded metal corners and rugged handles, both front and rear, aid in safe
handling. Internally, all major components are well secured and electrically
insulated to prevent damage due to shock and vibration. Rear shock
isolation/alignment bushings off load the slides when the unit is fully engaged.
The internal shielded
input transformer provides galvanic isolation with provisions for both domestic
(115 VAC, CONUS) and optional autoranging international input voltages (230 VAC,
OCONUS). Special EMI/RFI filters and input
power factor correction minimize both input current and harmonics. The input switch
and the galvanic isolation transformer
all provide a double pole isolated source for shipboard systems or
overseas locations where phase references and grounding are not consistent.
The LED
arrays keep the operator informed as to the unit's status including load and
battery levels. The high intensity audible alarm can be heard in high noise
environments.. All controls
and protective devices are brought to the front and rear panels with critical switches or
breakers guarded. Further, all front panel devices are recessed to prevent
damage or accidental operation. The internal intelligent PDU allows control of
the individual output circuits incorporating thermal and interlock interfaces
for additional control and safety, plus battleshort override. The display and
control panel can be mounted remotely in the rack at eye level, or on the keyboard console,
or on the unit front panel with only a logic level cable connection.
The rear panel provides locking
connectors for the input and output power with various optional configurations
available. The output connectors are standard
NEMA 5-15R receptacles with stainless steel cable restraints. This reverse air flow version draws air through the front and exhausts out the rear
vent into the rack. A removable and washable intake air filter and high capacity
stainless steel ball
bearing fan provide added protection in both controlled and hostile environments.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the Battery
Technology section. The
unit also operates as a frequency converter, taking 46-70 hertz input and
converting it to 60 hertz power. A frequency selection switch is available
for those sites requiring 50-hertz output instead of the standard
60-hertz. The
Status connector provides an
interface with optional computer software providing loss of AC and low battery status as well as
remote shut down capability. The PDU Remote Control connector provides an
interface to optional remote display/control panels.
See the Power Distribution Units section for a listing of
stand alone PDUs. See the N3 Series ETI0001-1237 for a
version of this UPS without the integrated PDU and remote control.
Overall, the PowerStation line is uniquely qualified for critical shipboard,
vehicle, airborne or land based systems combining advanced modular design
features with highly reliable construction.
Technical Specifications:
P/N: ETI0001-1474
| AC OUTPUT |
| Output voltage: UPS |
120 VAC true sinewave standard, up to 600 VAC
optional |
| Output rating: UPS |
2000 VA standard in 3U chassis
0.65 to 0.75 pf standard, optional configurations to 24,000 VA |
| Non-linear load capacity: UPS |
Up to 100% non-linear load capability w/o derating |
| Output voltage regulation: UPS |
± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step) |
| Overload surge capacity: UPS |
110% for 10 minutes; 125% for 30 seconds |
| Harmonic distortion: UPS |
Less than 5.0% into 100% non-linear load |
| Output frequency: UPS |
60 or 50 Hz ± 2.5% synchronized to utility
60 or 50 Hz ± 1.0% w/ utility not available
400 or 1000 Hz output available as an option |
| Operational status |
Status, load and battery level LEDs, w/contacts
Adjustable level,+90 dB audible alarm w/on/off |
| AC INPUT |
| Input voltage selection: |
Nominal 115 VAC, optional
autoranging input of 85-270 VAC |
| Input voltage tolerance: UPS |
85-135 VAC @ full load without
using battery, to 70 VAC @ 75% load |
| Input frequency: |
From 46 Hz to 70 Hz standard,
optional to 440 Hz |
| Input power factor: |
Better than 99% typically |
| Input/output isolation: |
2000 VA, up to 120 dB common mode,
<1.0 mA leakage |
| Input transient suppression: |
Complies with IEEE 587 and UL 1449 |
| Input control/protection: |
Guarded 2 pole input breaker w/ UPS fuse
Optional cold start to turn on w/o AC present |
| Input power connection: |
MS 3102A-22-2P, 3 pin, threaded locking |
| INTERNAL BATTERY |
| Battery type: |
Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+) |
| Battery life: |
Rated for continuous service life of 5 years |
| DC protection: |
Panel mounted fuse
standard, breaker optional |
| Battery expansion: |
Up to 24 hours w/ Battery Expansion Modules |
| DISTRIBUTION PANEL |
| Output circuits: |
Six controlled outputs via solidstate relays |
| Output control: |
Local/remote control panel w/rocker switches
Thermal and remote interlock ON/OFF control |
| Output receptacles: |
NEMA 5-15R with cable restraints, various options |
| MECHANICAL |
| Dimensions ( H x D x W ): |
5.25 (3U) x 23.5 x 19.0 in (133
x 597 x 483 mm) |
| Rack Slide Mount Patterns: |
Jonathan, General Devices patterns
standard, others optional |
| Alternate Mounting Options: |
Table, Wall, Floor, Portable, Horizontal/Vertical |
| Unit weight: |
115 lb. (52 kg) with lift handles front and rear |
| Audible noise: |
Less than 47 dB @ 5.0 ft., ANSI "A" scale |
| Cooling type: |
High capacity, negative pressure, forced air |
| Cooling air direction: |
Front intake, exhaust to rear,
others optional |
| Air intake filter: |
Washable metal filter media, others optional |
| ENVIRONMENTAL |
| Storage temperature: |
-40° to 158° F ambient (-40° to
70° C) |
| Operating temperature: |
32° to 126° F ambient ( 0° to
52° C),
lower/ higher optional |
| Operating humidity: |
0 to 95% relative humidity (non-condensing) |
| Storage elevation: |
Up to 40,000 ft (12,192 m) |
| Operating elevation: |
Up to 10,000 ft (3,048 m), higher
optional |
| STANDARDS |
| United States: |
Meets UL-1778 standard for UPS equipment,
MIL STDs 167-1, 454, 810, 901D Grade A, 1399-300A & 2000 |
| Canada: |
CSA C22.2 No. 107 UPS safety requirements |
| EMI Protection: |
EMI/RFI FCC Part 15, Class A;
EN55022; MIL
STD 461 |
| OPTIONAL ACCESSORIES |
| |
Autoranging International Input, Cold Start, Alternate I/O Configurations, Dual Source
Input, Battery Expansion, Batteryless Operation, Battery
Charger/Conditioner, Power Distribution Units, Software
Interface, Asynchronous serial
COM port, 10BaseT Ethernet SNMP/HTTP port,
Transport Cases, Slides
and Mounting Kits |
