Part Number: ETI0001-1482
NSN:
6130-01-570-9215
Rugged Mil Spec® 2000 VA Integrated
Rackmount UPS and Intelligent
Power Distribution Unit Combination
L3 Comm / Navy Military Power® Mil Spec N5
Configuration
2000 VA Rugged Rack Mount
Isolated UPS w/ Integrated
6 Circuit, 2 Pole, Intelligent, Solidstate Power Distribution Unit
With Drip Proof Front Panel, Shallow Depth, Removable Battery
P/N: ETI0001-1482 Rugged Mil Spec UPS and
PDU Standard Front
Panel Layout
NSN: 6130-01-570-9215

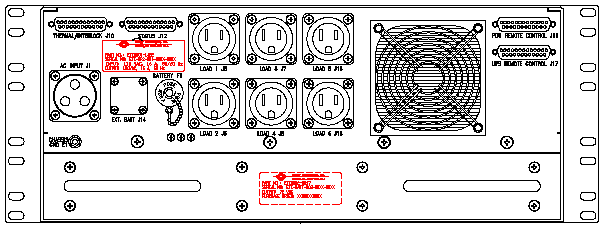

P/N: ETI0001-1482 Rugged Mil Spec UPS and
PDU Standard Rear
Panel Layout
Optional P/N: ETI0001-0876 UPS and PDU Remote Control Panel in 1U
The field proven Military Power® UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.
These units are equally suited for use in shipboard, airborne, vehicular, field
deployed or fixed locations with controlled or uncontrolled environments. The ETI0001-1482 was specifically designed for US Navy Submarine systems
requiring high density power in shallow depth racks.
The ETI0001-1482 does not require a separate PDU since the PDU
functions are already integrated into the UPS module. This saves rack space,
cabling and expense while improving overall reliability.
The heavy-duty chassis occupies only 4U (7.0”) of
rack space and is only 18.5" deep making it suitable for shallow racks as
found on submarines. The front panel is sealed meeting the Navy drip proof
requirements. The
rounded metal corners and rugged handles, both front and rear, aid in safe
handling. Internally, all major components are well secured and electrically insulated to prevent
damage due to shock and vibration in any axis. These units can be mounted
horizontally or vertically.
The internal shielded
input transformer provides galvanic isolation with provisions for both domestic
(115 VAC, CONUS) and optional autoranging international input voltages (85-270 VAC,
OCONUS).
The
unit also operates as a frequency converter, taking 46-70 hertz input and
converting it to 60 hertz power.
Special EMI/RFI filters and input
power factor correction minimize both input current and harmonics. The input
circuit breaker and the galvanic isolation transformer
all provide a double pole isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent.
The LED
arrays keep the operator informed as to the unit's status including load and
battery levels. The Elapsed
Time Indicator records the number of operational hours for records and
scheduling preventative maintenance of attached equipment. The high intensity audible alarm can be heard in high noise
environments. All controls
and protective devices are brought to the front and rear panels with critical switches or
breakers guarded. Further, all front panel devices are recessed to prevent
damage or accidental operation. The internal intelligent PDU allows control of
the individual output circuits incorporating thermal and interlock interfaces
for additional control and safety, plus Battleshort override. The display and
control panel can be mounted remotely in the rack at eye level, or on the keyboard
console with only a logic level cable connection.
The rear panel provides locking
connectors for the input and output power with various optional configurations
available. The output connectors are unique allowing the use of either standard
NEMA 5-15P plugs or MS threaded metal shell connectors. This
unit draws air through the rear air filter and exhausts out the side vents into the rack.
This allows the unit to be used in either positive, negative or neutral pressure
racks. The removable and washable metal screen air filters and high capacity
stainless steel ball bearing fans provide
added protection in both controlled and hostile environments. The
ETI0001-1482 has the added benefit of having a
field replaceable battery via a rear drawout battery module. The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the
Battery
Technology section. The Status connector provides an
interface with optional computer software providing loss of AC and low battery status as well as
remote shut down capability. The UPS Remote Control and the PDU Remote Control connectors
provide an
interface to optional remote display/control panels.
See the Power Distribution Units section for a listing of
stand alone PDUs. See the N3 Series UPS section for UPS without
the integrated PDU and remote control.
Overall, the Military Power line is uniquely qualified for critical shipboard,
vehicle, airborne or land based systems combining advanced modular design
features with highly reliable construction.
Technical Specifications:
P/N: ETI0001-1482
NSN:
6130-01-570-9215
AC OUTPUT |
Output voltage: |
120 VAC true sinewave standard,
others optional |
Output rating: UPS |
2000 VA standard in 4U chassis x 18.5" deep
0.65-0.75 pf standard, optional configurations to 24,000 VA |
Non-linear load capacity: |
Up to 100% non-linear load capability w/o derating |
Output voltage regulation: UPS |
± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step) |
Overload surge capacity: |
110% for 10 minutes; 125% for 30 seconds |
Harmonic distortion: |
Less than 5.0% into 100% non-linear load |
Output frequency: UPS |
60 Hz ± 2.5% synchronized to utility
60 Hz ± 1.0% w/ utility not available
400 or 1000 Hz output available as an option |
Operational status |
Status, load and battery level LEDs, w/contacts
Adjustable level,+90 dB audible alarm w/on/off |
AC INPUT |
Input voltage selection: |
Nominal 115 VAC, optional
autoranging input of 85-270 VAC |
Input voltage tolerance: UPS |
85-135 VAC @ full load without
using battery, to 70 VAC @ 75% load |
Input frequency: |
From 46 Hz to 70 Hz standard,
optional to 440 Hz |
Input power factor: |
Better than 99% typically |
Input/output isolation: |
2000 VA, up to 120 dB common mode,
<1.0 mA leakage |
Input transient suppression: |
Complies with IEEE 587 and UL 1449 |
Input control/protection: |
Guarded 2 pole 100 G shock rated breaker w/ UPS fuse
Optional cold start to turn on w/o AC present |
Input power connection: |
MS 3102A-22-2P, 3 pin, threaded locking |
INTERNAL BATTERY |
Internal
battery type: |
Maintenance free immobilized electrolyte,
Flame retardant materials (Oxygen Index 28+) |
Internal battery life: |
Rated for continuous service life of 5 years |
Internal DC protection: |
Panel mounted fuse
standard, breaker optional |
Internal battery time: |
15 minutes @ 1300 watts (2000 VA
@ 0.65 pf, typical full load for computers),
10 minutes @ 1500 watts load (maximum wattage), 35 minutes @ 50% load |
Internal battery recharge: |
Recharged to nominal in 8 hours |
Internal battery replacement: |
Drawout/plug-in module from front of unit |
DISTRIBUTION PANEL |
Output circuits: |
Six controlled outputs via solidstate relays |
Output control: |
Local/remote control panel w/rocker switches
Thermal and remote interlock ON/OFF control |
Output receptacles: |
MS / NEMA 5-15R threaded locking, various options |
MECHANICAL |
Dimensions ( H x D x W ): |
7.0 (4U) x 18.5 x 19.0 in (178 x
470 x 483 mm) |
Rack Slide Mount Patterns: |
Jonathan, General Devices patterns
standard, others optional |
Alternate Mounting Options: |
Table, Wall, Floor, Portable, Horizontal/Vertical |
Shipping weight: Total
UPS w/o Battery Module
Drawout Battery Module |
169 lb. ( 77 kg) with lift
handles front and rear
105 lb. ( 48 kg) with lift handles front and rear
64 lb. ( 29 kg) with lift handles rear |
Audible noise: |
Less than 47 dB @ 5.0 ft., ANSI "A" scale |
Cooling type: |
High capacity, positive pressure, forced air |
Cooling air direction: |
Rear intake, exhaust to sides |
Air intake filter: |
Washable metal filter media, others optional |
ENVIRONMENTAL |
Storage temperature: |
-40° to 158° F ambient (-40° to 70° C) with fully charged batteries |
Operating temperature: |
32° to 122° F ambient ( 0° to 50° C),
lower/ higher optional |
Operating humidity: |
0 to 95% relative humidity (non-condensing) |
Storage elevation: |
Up to 40,000 ft (12,192 m) |
Operating elevation: |
Up to 15,000 ft (4,572 m), higher optional |
STANDARDS |
United States: |
Meets UL-1778 standard for UPS equipment,
MIL STDs 167-1, 454, 810, 901D Grade A, 1399-300A & 2000 |
Canada: |
CSA C22.2 No. 107 UPS safety requirements |
EMI Protection: |
EMI/RFI FCC Part 15, Class A;
EN55022; MIL
STD 461 |
OPTIONAL ACCESSORIES |
|
Autoranging International Input, Cold Start, Alternate I/O Configurations, Dual Source
Input, Battery Expansion, Batteryless Operation, Battery
Charger/Conditioner, Power Distribution Units, Software
Interface, Asynchronous serial
COM port, 10BaseT Ethernet SNMP/HTTP port,
Transport Cases, Slides
and Mounting Kits |
